Jeep Wrangler Red Light Flashing Above Temp Gauge (Troubleshooting Guide)

A red light flashing above the temperature or oil temperature gauge on Jeep Wrangler dashboards signals the Sentry Key Immobilizer System or a related security/starting fault. This guide explains what that light means, lists every likely cause, gives step-by-step checks and fixes, and shows how to get the Jeep started and repaired without guesswork.

Quick summary

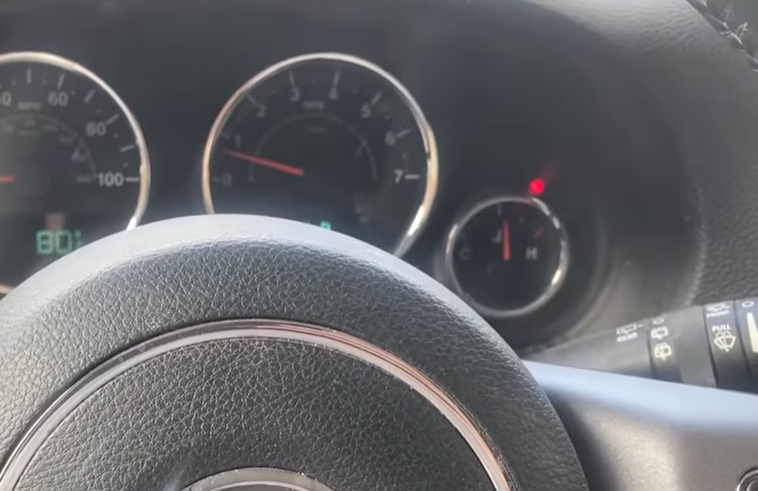

• The blinking red dot above the temp gauge is the Sentry Key Immobilizer indicator, the vehicle security light that shows the key recognition status and security faults. Forum reports identify this light as the immobilizer indicator.
• If the Jeep cranks but will not start and the light is flashing, the immobilizer is refusing to accept a key. A video demonstrates this symptom on JK Wranglers. See a JK example.
• Common, fixable causes: dead key fob battery, unsynced or damaged transponder key, low vehicle battery or voltage issues, damaged antenna ring around the ignition, or aftermarket wiring interference.
• Quick field fixes: try a spare key, replace the key fob battery, fully charge or replace the vehicle battery, and reattempt a key resync sequence.
• If the light remains abnormal after basics, run dealer-level diagnostics or have the immobilizer module and ignition ring inspected. Community threads describe dealer visits for similar symptoms.

What the light is and why it matters

The red flashing light above the temperature gauge is the visual indicator for the vehicle security system, known as the Sentry Key Immobilizer. The system reads a coded transponder in the key. If the system does not recognize a valid code, it prevents engine start. When that indicator flashes abnormally, the immobilizer has either not detected a valid key or the system has an electrical or module fault.

Normal behavior versus fault behavior

Indicator behavior	Meaning
Slow steady blink when parked	Security armed and functioning normally
Rapid or irregular flashing	Immobilizer error or failed key recognition
Solid red lit and no crank or no start	Persistent immobilizer lockout or module fault

All possible causes and how to check each one

1. Key fob battery is dead or weak

Symptoms: Button functions fail at distance, immobilizer light misbehaves, vehicle might start inconsistently.

1. Try the spare key fob immediately. If the spare works, replace the main fob battery.
2. Open the fob and replace the coin cell battery. Most Jeep fobs use CR2032 style cells.
3. After replacement, test lock/unlock and start behavior.

2. Key transponder or key damage

Symptoms: No slice of recognition even with fresh key battery, intermittent starts, no communication between key and immobilizer ring.

1. Inspect the key head for physical damage or water intrusion.
2. Try any other programmed key. If only one key fails, the transponder inside that key is likely bad.
3. If all keys fail, proceed to vehicle-side checks below.

3. Vehicle battery and voltage problems

Symptoms: Dash lights blink odd, immobilizer light appears after heavy accessory load or after attempting to use on-board air, starting issues.

1. Check battery voltage with a multimeter. Resting voltage should be 12.4 to 12.7 volts for a healthy battery.
2. Charge the battery fully or try a jump start from a known good battery.
3. After voltage is stable, attempt to start. If the light returns only when voltage dips, replace the battery and test charging system.

4. Antenna ring or ignition reader fault

Symptoms: No key recognition at the ignition even with working keys, security light active, no error codes reported by owner scanner.

1. The antenna ring around the ignition cylinder reads the key transponder. Physical damage or loose connectors can break communication.
2. Visually inspect for disconnected plugs under the dash near the steering column.
3. If connectors are secure but problem persists, the ring assembly may need replacement. This requires dealer or experienced technician service.

5. Immobilizer module or BCM fault

Symptoms: Diagnostic trouble codes, persistent immobilizer light, no keys work, key reprogramming fails.

1. Use an OBD2 scanner that supports security module diagnostics. Look for immobilizer or body control module codes.
2. Clear codes only after addressing root cause. If codes return, immobilizer module or BCM may need reprogramming or replacement.
3. This is a dealer-level repair in many cases because keys and modules must be synchronized with OEM tools.

6. Aftermarket electronics and wiring interference

Symptoms: Problems started after stereo, alarm, remotes, or hardwired accessories were installed.

1. Temporarily disconnect aftermarket items that tie into the vehicle power, ignition, or door lock circuits.
2. Test immobilizer behavior with aftermarket systems disconnected.
3. If the issue stops, rework the aftermarket installation to OEM standards or remove it.

7. Software and programming glitches

Symptoms: Problem appears after battery disconnect, jump start, or module replacement; keys no longer recognized.

1. Some key resync steps are possible at the vehicle without dealer tools. Try this generic resync: turn key to ignition on, press the lock on remote, wait, then attempt start. Exact steps vary by year and model.
2. If resync fails, a dealer scan and key programming session is required.

Step-by-step troubleshooting flow

1. Try alternate or spare key. If spare starts the Jeep, replace or reprogram the failed key.
2. Replace the key fob battery and retest. Many immobilizer problems are a direct result of weak fob batteries.
3. Check vehicle battery voltage. Fully charge or replace the battery as needed. Low voltage causes communication errors.
4. Inspect under-dash connectors around the steering column for loose or wet plugs and repair as needed.
5. Disconnect aftermarket accessories and test again.
6. Use a capable OBD2 scanner to read security or body control module codes. Note codes and timestamped events.
7. If all vehicle-side checks fail, call the dealer and provide your findings, codes, and note that the immobilizer light is flashing above the temp gauge. Community threads show dealers often confirm this is the immobilizer light and proceed to module/key checks.

Practical immediate fixes to get the Jeep started

• Use a known good spare key. If it starts, drive to a safe place and address the faulty key later.
• Fully charge or jump the vehicle battery. If the Jeep starts, replace the battery and test charging system immediately.
• If key recognition is intermittent, cycle the key slowly in the ignition while the light is observed. Sometimes a poor contact with the ring will allow a start.
• Call roadside assistance and request a dealer tow if immobilizer faults persist and you cannot get the vehicle to a workshop safely.

When to see a dealer or qualified technician

• You do not have a working spare key and key programming is required.
• OBD2 security or BCM codes point to module failure or lost key programming.
• Ignition antenna ring or immobilizer module replacement is needed. These components often require OEM programming.
• Aftermarket troubleshooting shows system-level interference that cannot be resolved easily in the field.

Frequently Asked Questions

What exactly does the red light above the temp gauge mean?

The light is the Sentry Key Immobilizer indicator. It shows the status of the vehicle security system and whether a valid key is recognized. Forums and owners identify that location as the immobilizer indicator.

Can a weak vehicle battery trigger the immobilizer light?

Yes. Low battery voltage can interrupt communication between the immobilizer and key reader, causing the light to flash and preventing start. Always verify battery voltage as an early troubleshooting step.

Will replacing the key fob battery fix it?

Often yes. A weak or dead key fob battery prevents the remote portion of the key from transmitting, and some vehicles will show immobilizer errors as a result. Replace the coin cell in the fob and test with a spare key if possible.

Can I reprogram a key myself to fix the light?

Some basic resync procedures exist for certain model years, but full key programming often requires dealer-level tools. If you only need to resync a working fob, follow your owner’s manual steps or attempt the vehicle-specific resync sequences found in community guides.

Does this light mean my Jeep was tampered with or stolen from?

Not necessarily. The light indicates a security or start recognition issue. It can be triggered by normal electrical events like a dead battery, poor connections, or faulty keys. If you suspect theft or tampering, inspect door locks and ignition hardware and involve authorities if needed.

Will disconnecting the battery clear the light?

Disconnecting the battery may clear transient faults temporarily, but it does not repair the root cause and may require key reprogramming or module relearn after reconnection. Use battery disconnect only as a temporary diagnostic step.

Can aftermarket alarms cause this light to flash?

Yes. Improperly installed alarm systems, wiring taps, or power accessories can interfere with the immobilizer and cause the light to behave abnormally. Remove or disable aftermarket gear when troubleshooting.

How urgent is this to fix?

It is urgent if the vehicle will not start. If the Jeep runs normally and the light shows a normal slow blink, you can schedule repairs. If the light is rapid, irregular, or prevents starting, address it immediately.

Where can I find real-world examples of this issue?

Owners report identical lights and symptoms on Wrangler forums and video walkthroughs. Real-world threads show the same red dot described above the oil temp gauge and discuss dealer visits. See a community report and watch a JK troubleshooting video.

What should I tell the dealer when I call?

Tell them the red immobilizer light is flashing above the temp gauge, describe the failure mode (no start, intermittent start), list tests you ran (spare key, new fob battery, battery voltage, OBD2 codes), and provide any recent events such as battery disconnect or aftermarket installs. That speeds diagnosis.

Take action now. Try a spare key, replace small batteries first, check vehicle voltage, and remove aftermarket gear. If the immobilizer light continues to flash abnormally after those steps, get dealer diagnostics and module/key programming. Correct diagnosis and the right repair will restore reliable starts and remove the flashing red dot permanently.
